Two independently controllable channels, waveforms designed from your phone and finely adjustable intensity: this is how electrostimulation truly becomes your own.
Why is the DG-LAB Coyote 3.0 electrostimulation controller so good?
The Coyote 3.0 sends small electrical impulses to the electrodes connected to it. The sensation can range from a gentle tingling to strong muscle contractions. The two channels (A and B) can be adjusted independently, so you can stimulate two body parts with different rhythms. In the free DG-LAB 3.0 app you can set the waveform, frequency and intensity. The device also works without a phone, using the built-in programmes.
Why customers like the DG-LAB Coyote electrostimulation device
- Two independent channels: you can stimulate two electrodes or body parts with different intensities and rhythms.
- Precise control: the intensity can be adjusted per channel between 0 and 200 in small steps.
- Custom waveforms: you can create your own rhythms and patterns in the app.
- Safety limit: you can set a maximum intensity per channel in the app.
- Works without a phone: the built-in programmes can be started using the switch on the device.
- Expandable system: can be linked with up to 6 wireless DG-LAB sensors.
- Easily portable: it weighs only 80 g and can be worn on your body with the thigh strap.

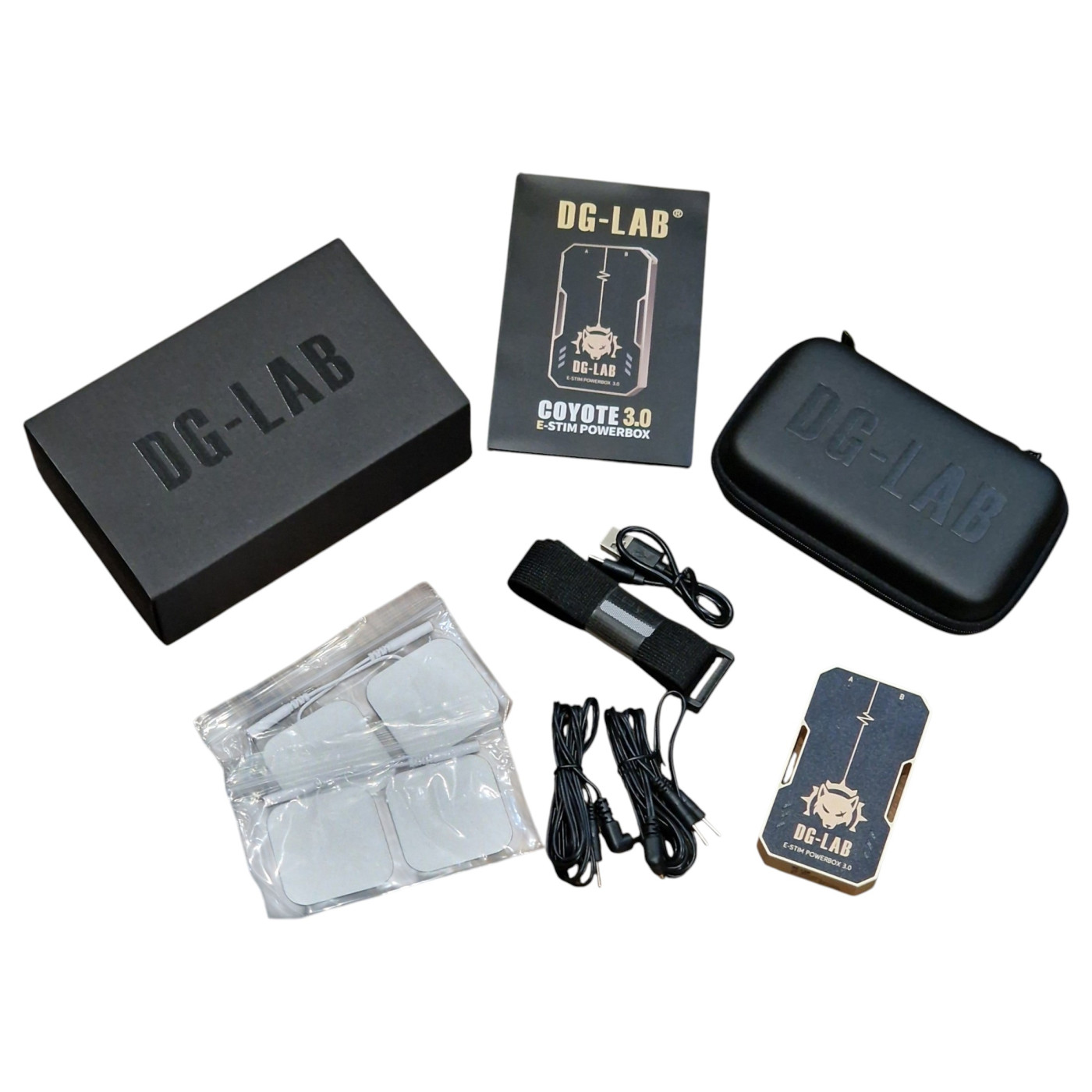

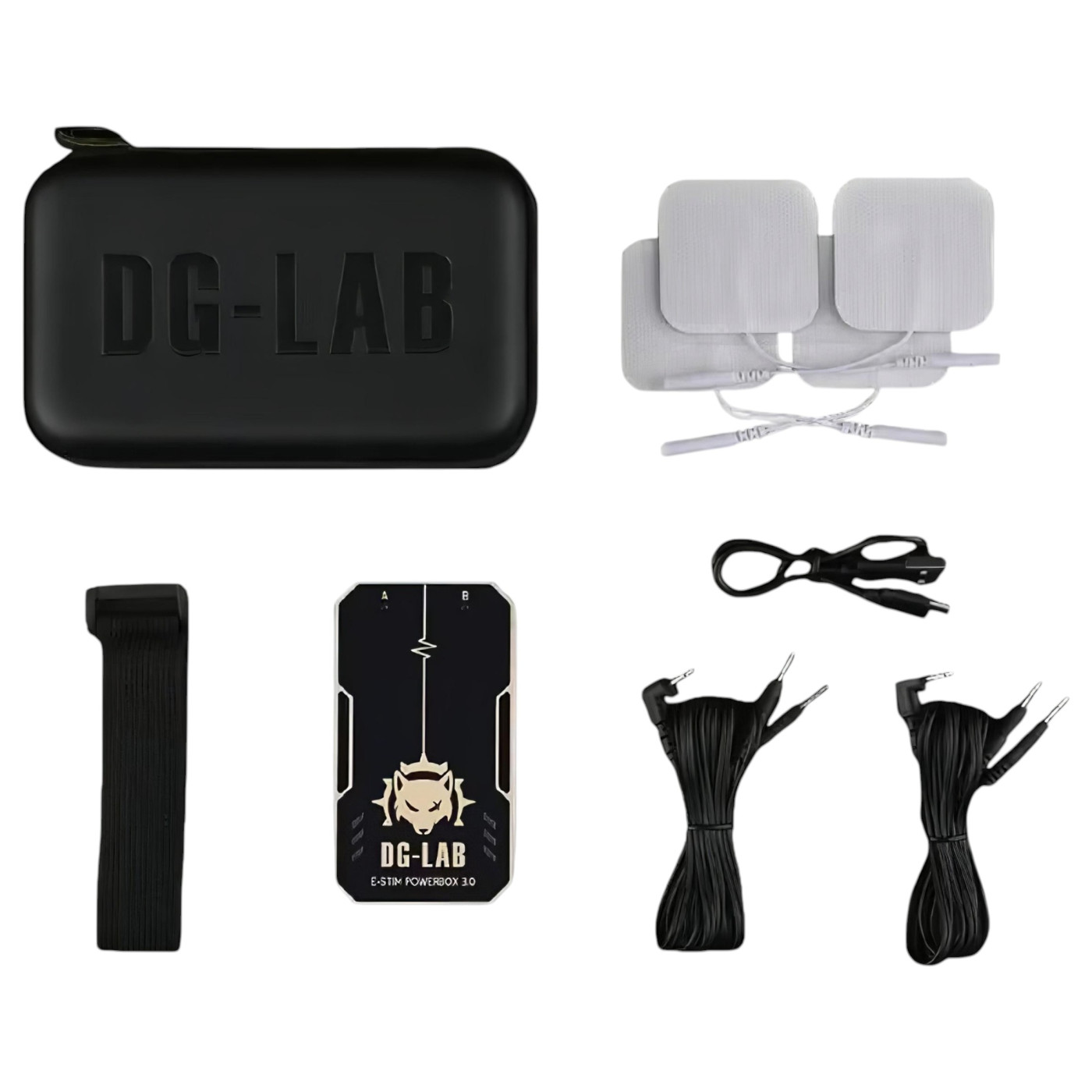

Contents of the package

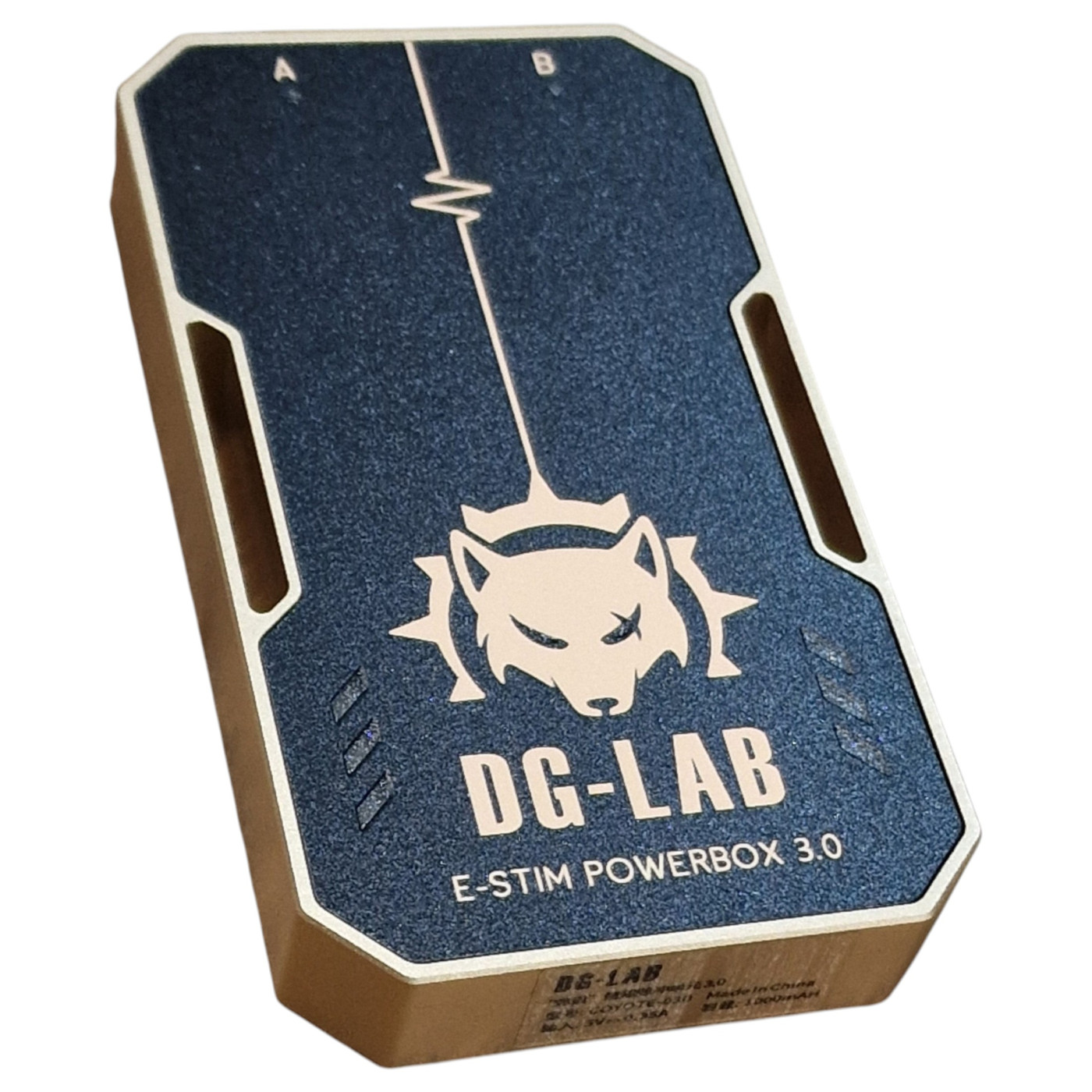

- 1 x DG-LAB Coyote 3.0 control unit (black)

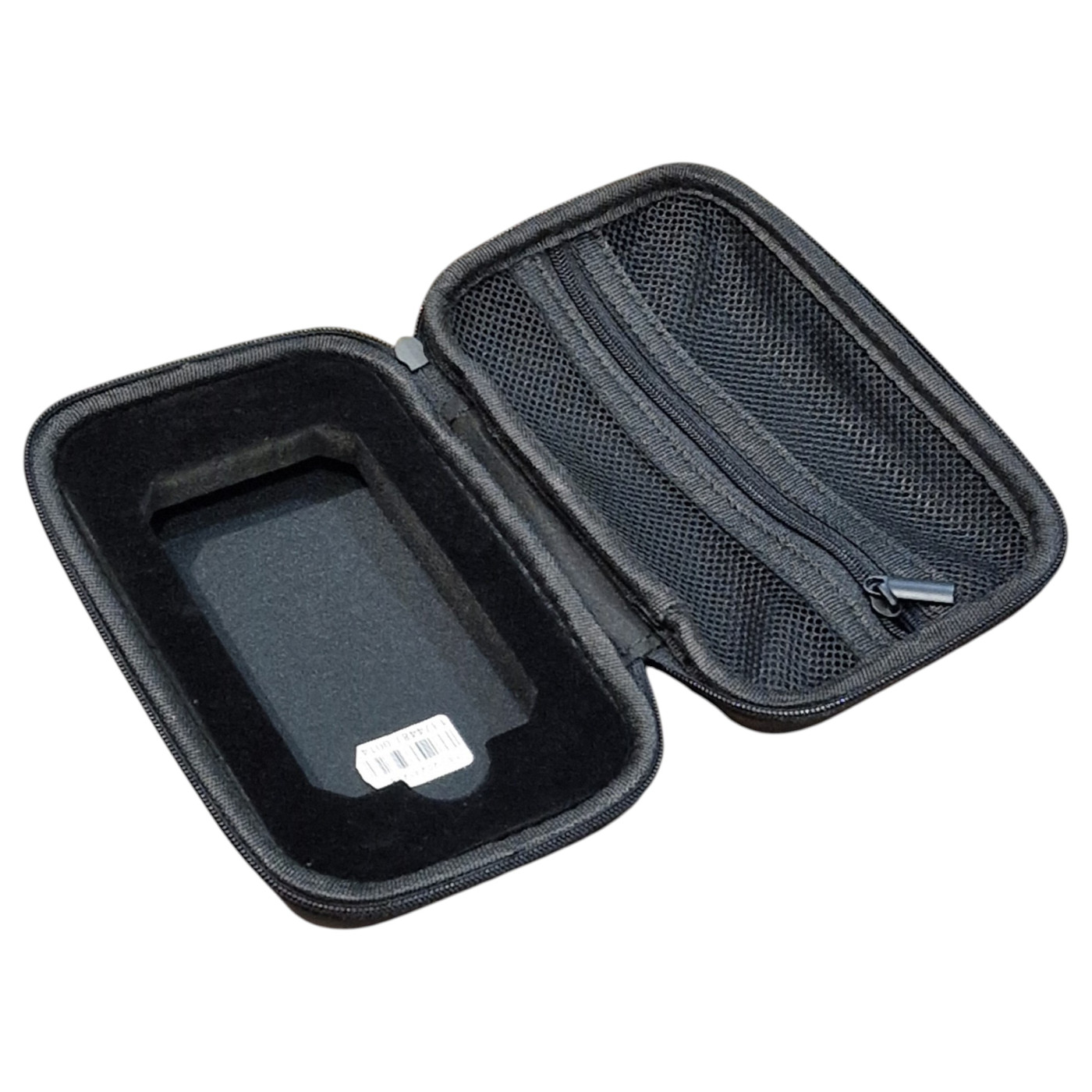

- 1 x zip-up, hard storage case
- 1 x USB-A to USB-C charging cable (without mains adapter)
- 2 x electrode cable (2.5 mm jack to 2 mm pin)
- 4 x self-adhesive, square electrodes
- 1 x elastic thigh strap
- 1 x user manual
Product features
- Brand: DG-LAB
- Type: dual-channel electrostimulation controller
- Colour: black
- Length: 100 mm
- Width: 55 mm
- Thickness: 14 mm
- Weight: 80 g
- Battery: 1000 mAh, lithium-polymer
- Charging: USB-C, 5 V / 1 A, 2-3 hours
- Channels: 2 (A and B), 0-200 intensity levels per channel
- Output current: up to 50 mA (RMS, at 500 Ω load)

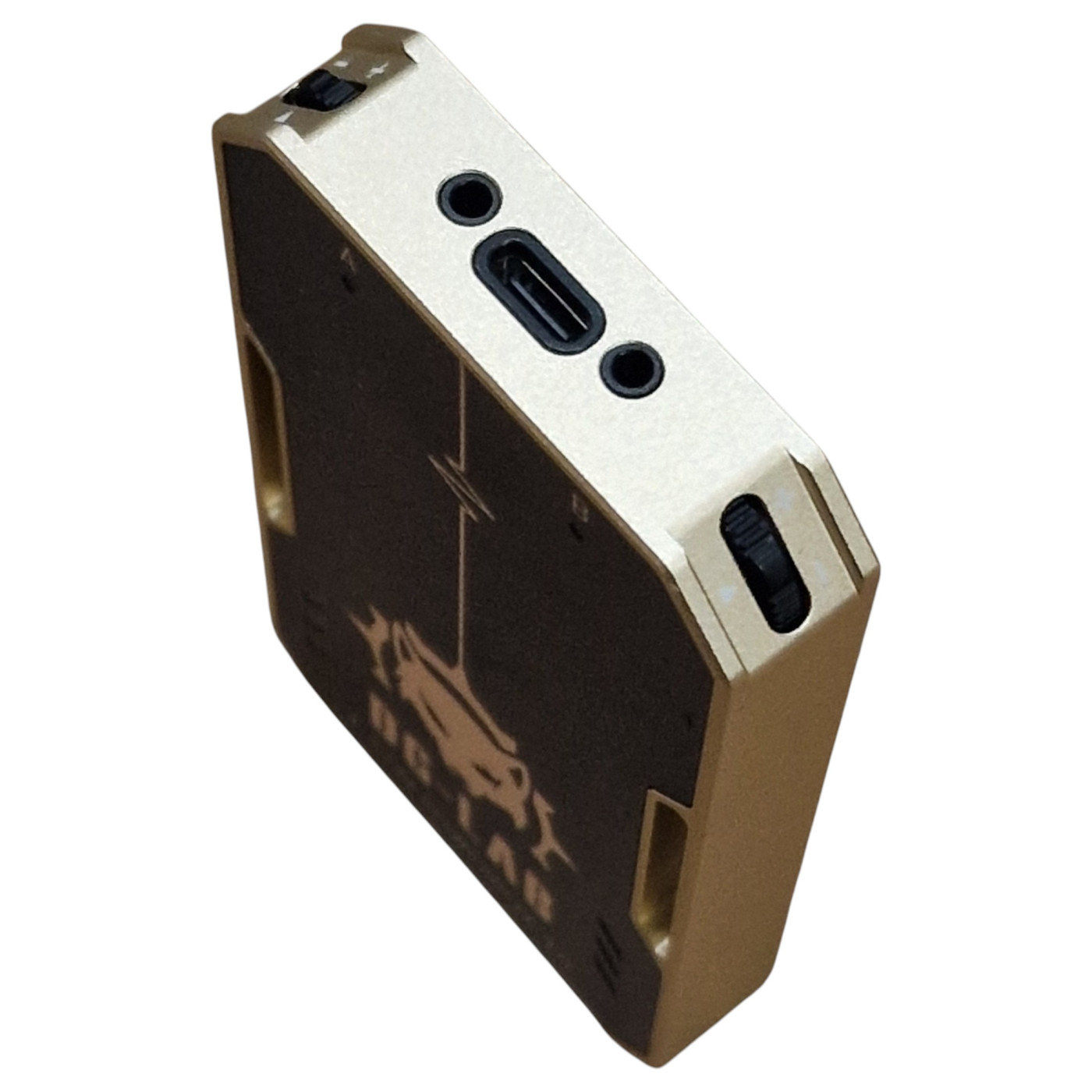

- Output connector: 2.5 mm socket per channel
- Wireless connection: Bluetooth, approx. 10 m range without obstacles
- Control: DG-LAB 3.0 app or the device switch
- Certifications: CE, FCC, RoHS
Operation
After switching on and self-test, the indicator lights glow yellow. Tilt the switch up or down to change mode. Press briefly to start the programme, slide to adjust the intensity. Press again to stop the output; press and hold for 3 seconds to switch the device off.
Charging
You can charge the device with the supplied USB-C cable; a full charge takes 2-3 hours. Always unplug the electrodes before charging. When fully charged, the indicator light on the shoulder turns green. At low charge the output switches off automatically.
Important safety information for using the DG-LAB Coyote 3.0 controller
- Do not use if you have a pacemaker, any other implanted electronic or metal device, or in case of heart disease, epilepsy or pregnancy.
- Never place the electrodes on or above the chest, on the head, neck or face. The path of the current must not cross the chest.
- Always start from the lowest intensity and increase only gradually. Do not move the electrodes while the device is operating.
- Do not stimulate a single body area for too long at a stretch; take regular breaks. Do not place electrodes on injured or inflamed skin.
- The device is not waterproof; do not use it in humid environments (for example in the bathroom).
- Drawback: custom waveforms and sensor-based games require a smartphone and the app.
Cleaning instructions
Wipe the controller with a soft, slightly damp cloth, then allow it to dry. Do not immerse it in water. After use, place the self-adhesive electrodes back onto the protective film and store them in a resealable bag. For internal electrodes, use a water-based, conductive lubricant.
User manual
